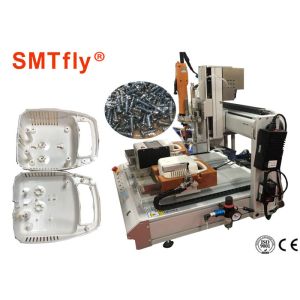

Automated PCB Screw Tightening Machine for Customizing Fixtures with Your PCBs Specification:
| Model |
SMTfly-LS1B |
| Brand Name |
SMTfly |
| Certification |
CE ISO |
| Working Range |
500mm*500mm*100mm(x*y*z) |
| Drive Mode |
3 axis driver |
| Position Accuracy |
±0.02MM |
| Control System |
PLC+TP |
| Screw Feeding |
Absorption type |
| Operation Method |
By programming |
| Working Speed |
Min<1.2S |
| Memory Size |
999groups |
| COM |
USB |
| Voltage |
220VAC,50HZ |
| Air Pressure |
0.4Mpa |
| Screws Scope |
M2.0-M5.0 |
| Power |
220V/50V |
| Screw Materials |
Iron Copper Stainless Steel Etc. |
| Warranty |
Free of charge one year |
| Packaging |
Each set be packed in plywood case |
| Payment Terms |
T/T,L/C |
Automated PCB Screw Tightening Machine for Customizing Fixtures with Your PCBs Application:
Notebook computers, glasses, mobile phones, LCD monitors watches, integrated board, Sound box, Camera, Toys, small appliance Etc.
Automated PCB Screw Tightening Machine for Customizing Fixtures with Your PCBs Input Program:
Programming input signal is when the proplem execution to the programming of the point,if the values of the input state accord with the specified input signals then program jump to the specified address or label,if not then program continue to execute,Use this function can be acheived with other devices with the work or as a pause key input,etc(Signal definition: if has the input signal then the signal is defined as the amount of1,no input signal is defined as the amount of the signal 0)
Automated PCB Screw Tightening Machine for Customizing Fixtures with Your PCBs Output Program:
When the program is executed to the output signal programming point,then the output signal will output specified value,1 as DC24V output,0 as DC0V output,When debugging ,we can testing the corresponding output,such as starting the screwdriver,controlling solenoid value suction,clamping cylinder,etc.
Automated PCB Screw Tightening Machine for Customizing Fixtures with Your PCBs Feature:
- Auto-intelligent detection for screw loose, screw missing,screw unstable.K576.
- Automatic feeding and lock screws, any screw hole point and location data can be stored in the system at any time.
- Excellent commonality and easy replace Screw M2.0—M5.0.
- Using X,Y,Z axis operation movement system control.
